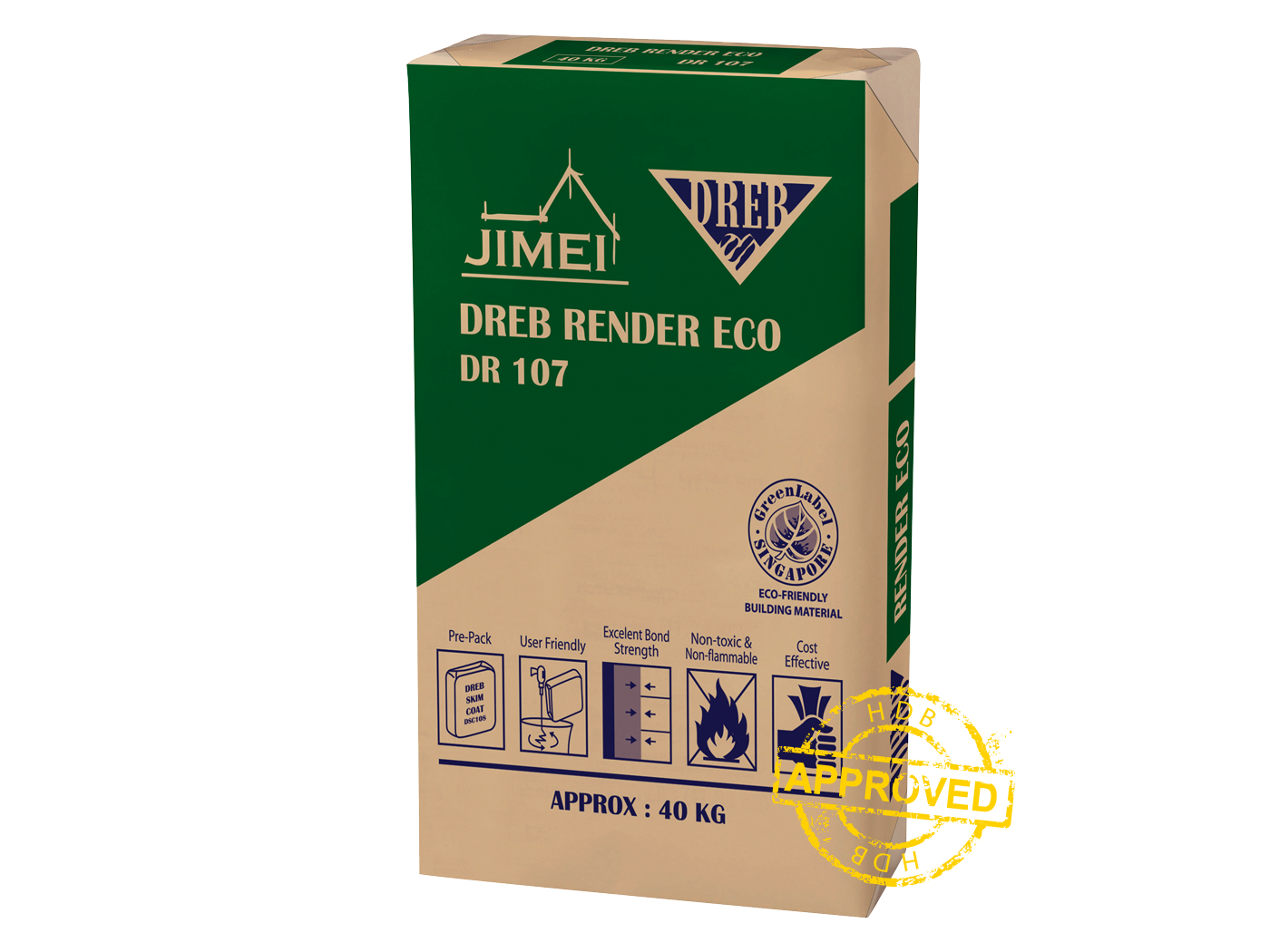

USES

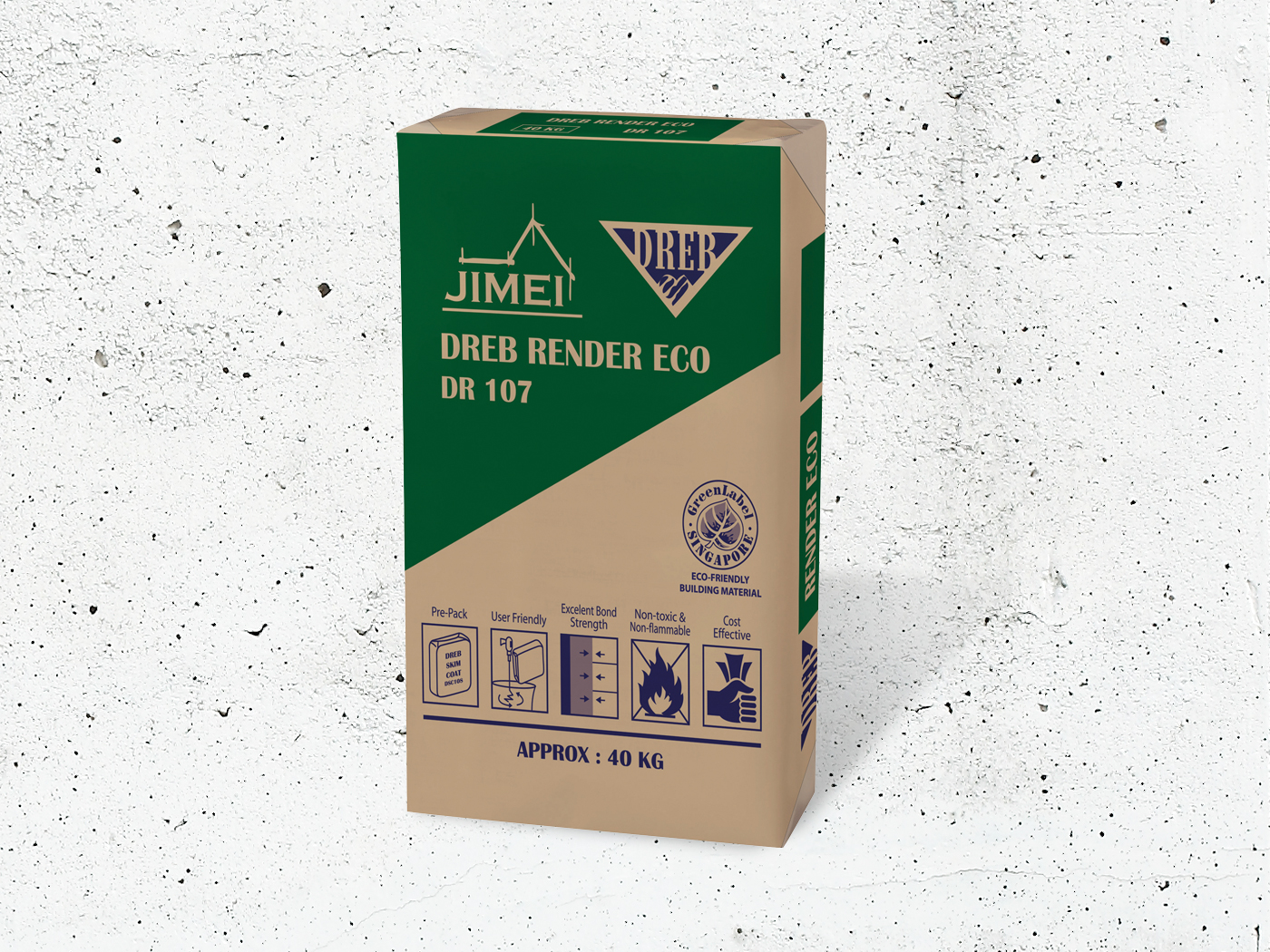

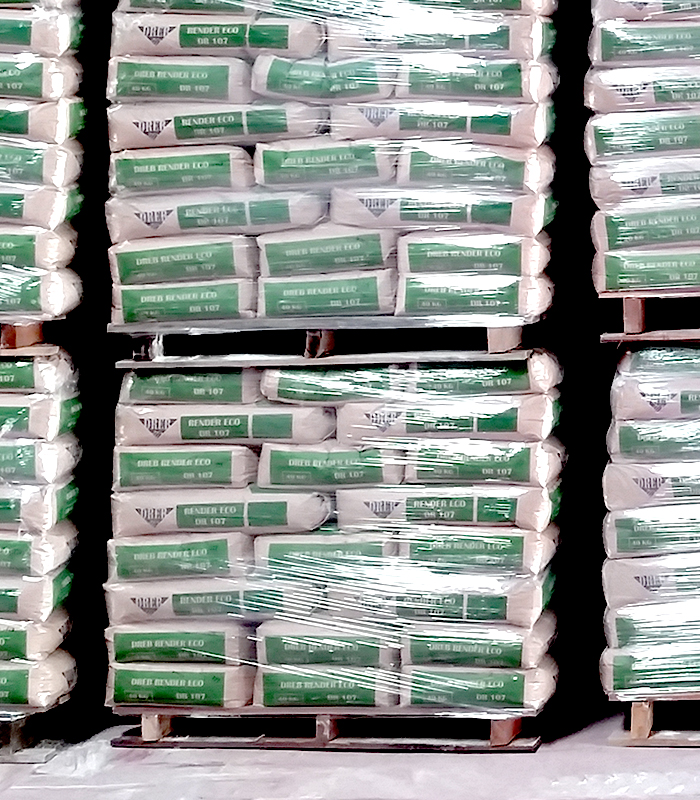

DREB RENDER ECO is highly recommended for bedding, joint mortar for brickwork and block work, backing and bedding for wall tiles. Is also suitable for all types of concrete substrates, lightweight block, brick wall and block wall.

BENEFITS

  Approved by Singapore Eco label authorities.
  Minimize shrinkage cracking.
  Good weather resistance and high durability.
  Excellent bonding strength.
  Premixed to ensure good consistent quality.
  Consistent quality.
  Convenient in placing, handling, mixing and application.

DIRECTION FOR USE

Surface preparation Surface of substrates should be clean and remove all from oil, grease, dust and others contaminants. Dry substrates should be dampened before application of DREB RENDER ECO.

Mixing Mix of DREB RENDER ECO should use the clean water and mix thoroughly using a hand-held or mechanical mixer for 3-5 minutes until a desire homogenous mix is achieved and ensure the mix is free from lumps. The mix ratio is add approximately 5.8 – 6.5 litres of clean water to 40 kg bag of DREB RENDER ECO.

Application method DREB RENDER ECO should applied by use a steel trowel or spraying machine. The first coat should have application thickness not exceeding 8mm. After curing under shaded ambient condition for at least 3-4 hours before the second coat is applied.

POT LIFE

Approximately 40 – 60 minutes after mixing.

PACKAGING

One bag of DREB RENDER ECO is packed in 40 kg.

SHELF LIFE

Shelf life up to 12 months from the date of production. It must store in dry place free from moisture contact in original sealed packing.

TECHNICAL INFORMATION

  Appearance
    Grey
  Water/powder ratio
    5.8 – 6.5 litresof water per40 kg bag
  Tensile Adhesion Strength
    ≥ 0.8 N/mm² (14 days)
  Binder
    Portland Cement
  Filler Material
    Graded Sand
  Additives
    Polymers to improveworkability,water retention
  Recommended Thickness
    8mm – 15mm per layer of application
  Coverage
    Approximately 26 - 30m² /mm/ 40kg bag
  Shear Adhesion Strength
    ≥ 1.00 N/mm² (14 days)

USES

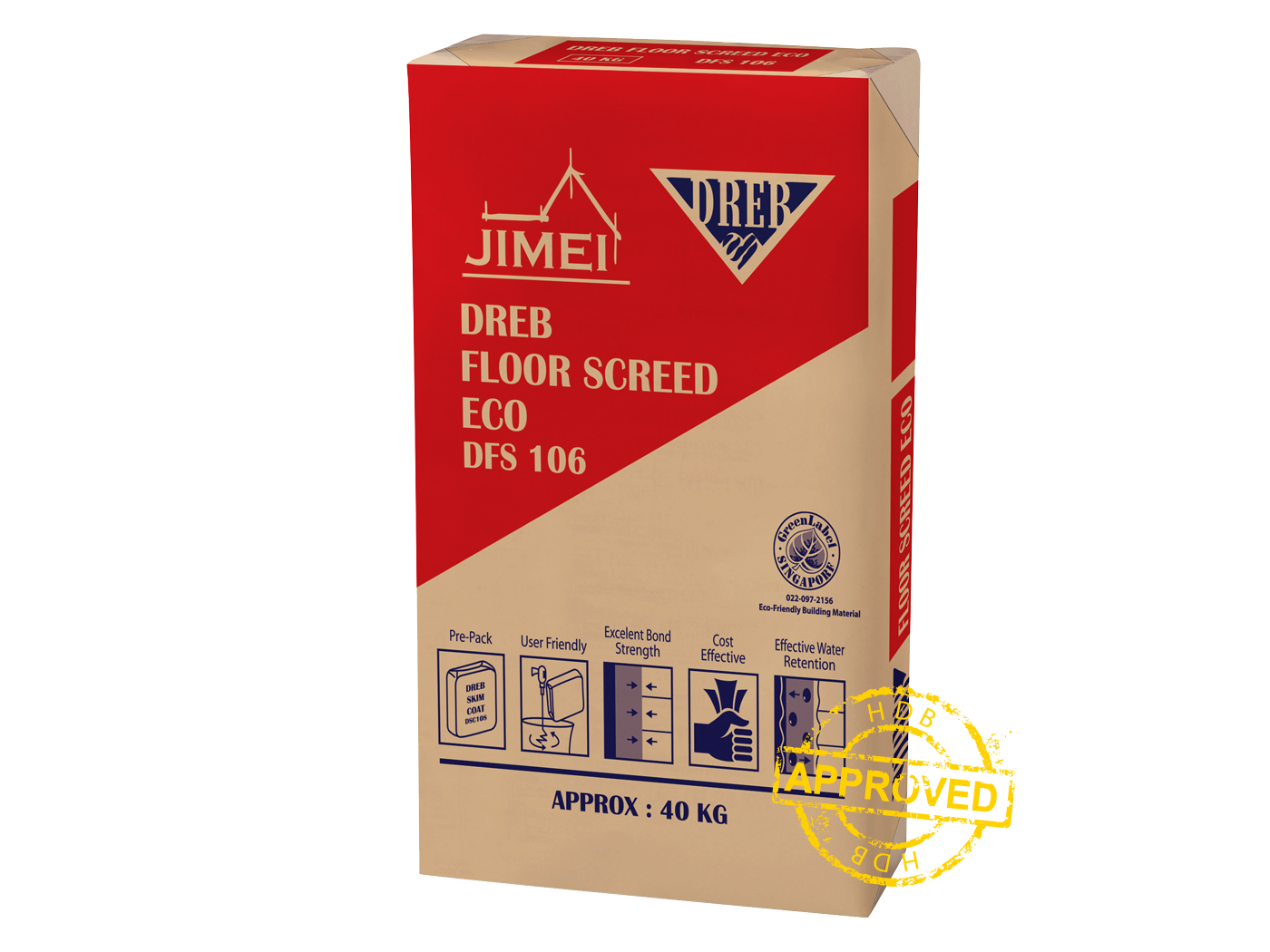

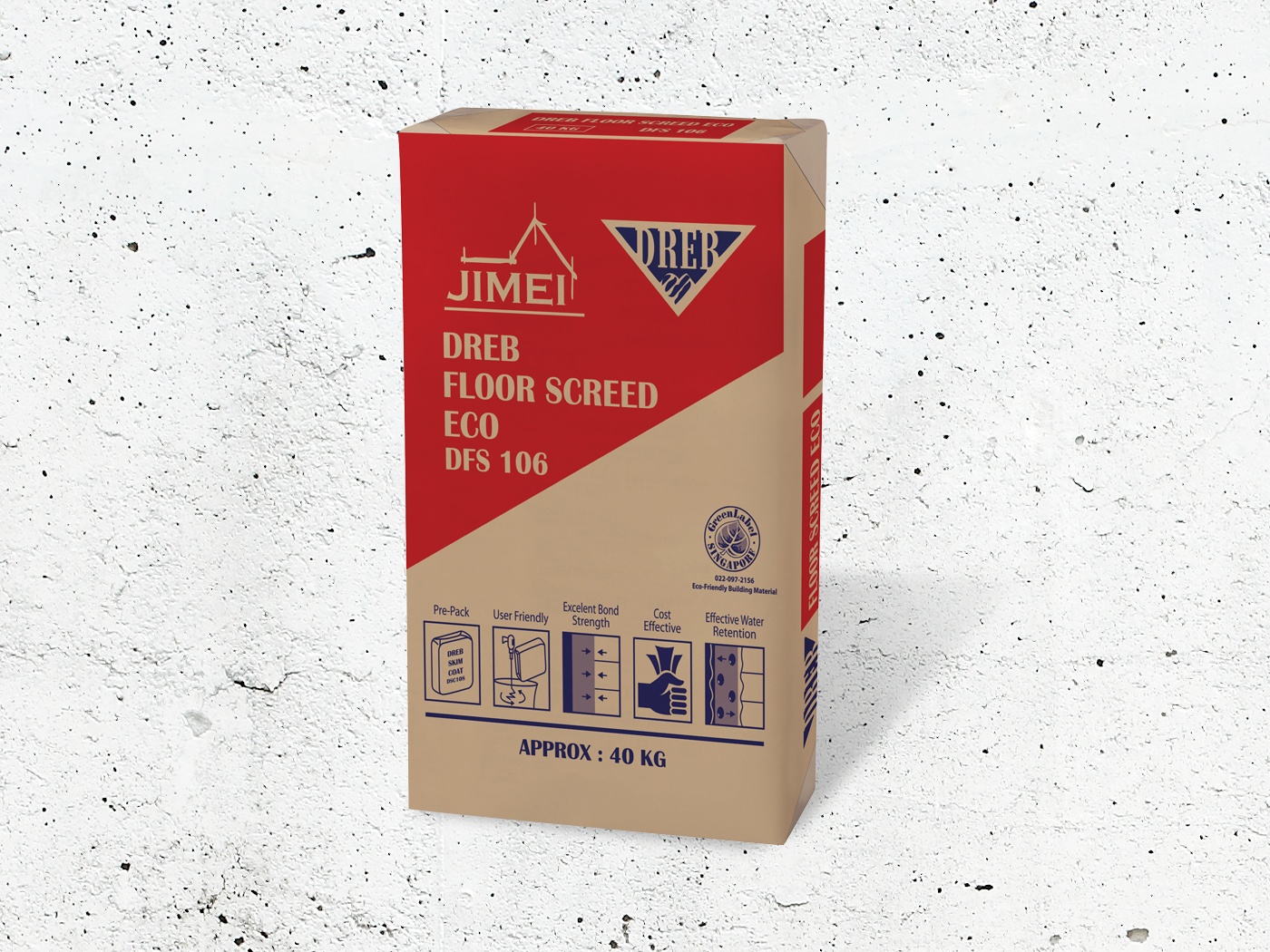

DREB FLOOR SCREED ECO is suitable for use as a normal screed on new concrete or to repair old concrete substrates such as housing estates or heavy industrial floors. It provides suitable bedding to receiving tiles under internal and external application.

BENEFITS

  Approved by Singapore Eco label authorities.
  Good weather resistance and high durability.
  Excellent bond strength and workability.
  Premixed to ensure good consistent quality.
  Eliminates all surface crack lines.
  Convenient in placing, handling, mixing and application.

DIRECTION FOR USE

Surface preparation All surface of substrates should be clean and remove all from oil, grease, dust and others contaminants. Dry substrates should be dampened before application of DREB FLOOR SCREED ECO. For old worn out concrete substrates, the surface should be hacked off and buttering with bonding agent before applying DREB FLOOR SCREED ECO.

Mixing Mix of DREB FLOOR SCREED ECO should use the clean water and mix thoroughly using a hand-held or mechanical mixer for 3-5 minutes until a desire homogenous mix is achieved and ensure the mix is free from lumps. The mix ratio is add approximately 5.6 – 6.4 litres of clean water to 40 kg bag of DREB FLOOR SCREED ECO.

Application method Apply DREB FLOOR SCREED ECO by use a steel trowel, wooden/steel float while the mix is still workable for application onto the substrate and concrete. It should be cured for at least 1 day (24 hours) before any tiling works.

POT LIFE

Approximately 30 – 60 minutes after mixing.

PACKAGING

One bag of DREB FLOOR SCREED ECO is packed in 40 kg.

SHELF LIFE

Shelf life up to 12 months from the date of production. It must store in dry place free from moisture contact in original sealed packing.

TECHNICAL INFORMATION

  Appearance
    Grey
  Water/powder ratio
    5.6 – 6.4 litres of water per 40 kg bag
  Compressive Strength
    ≥ 25 N/mm²(28 days)
  Binder
    Portland 3Cement
  Filler Material
    Graded Sand
  Coverage
    Approximately 2.1 - 2.5m² / 10mm thick / 40kg bag
  Recommended Thickness
    10mm – 40mm
  Stiffening Time
    1.0 N/mm² –> Approximately 282 min – 360 min
    2.0 N/mm² –> Approximately 332 min – 420 min
  Wet Density
    Approximately 1800 – 2100 kg/m³

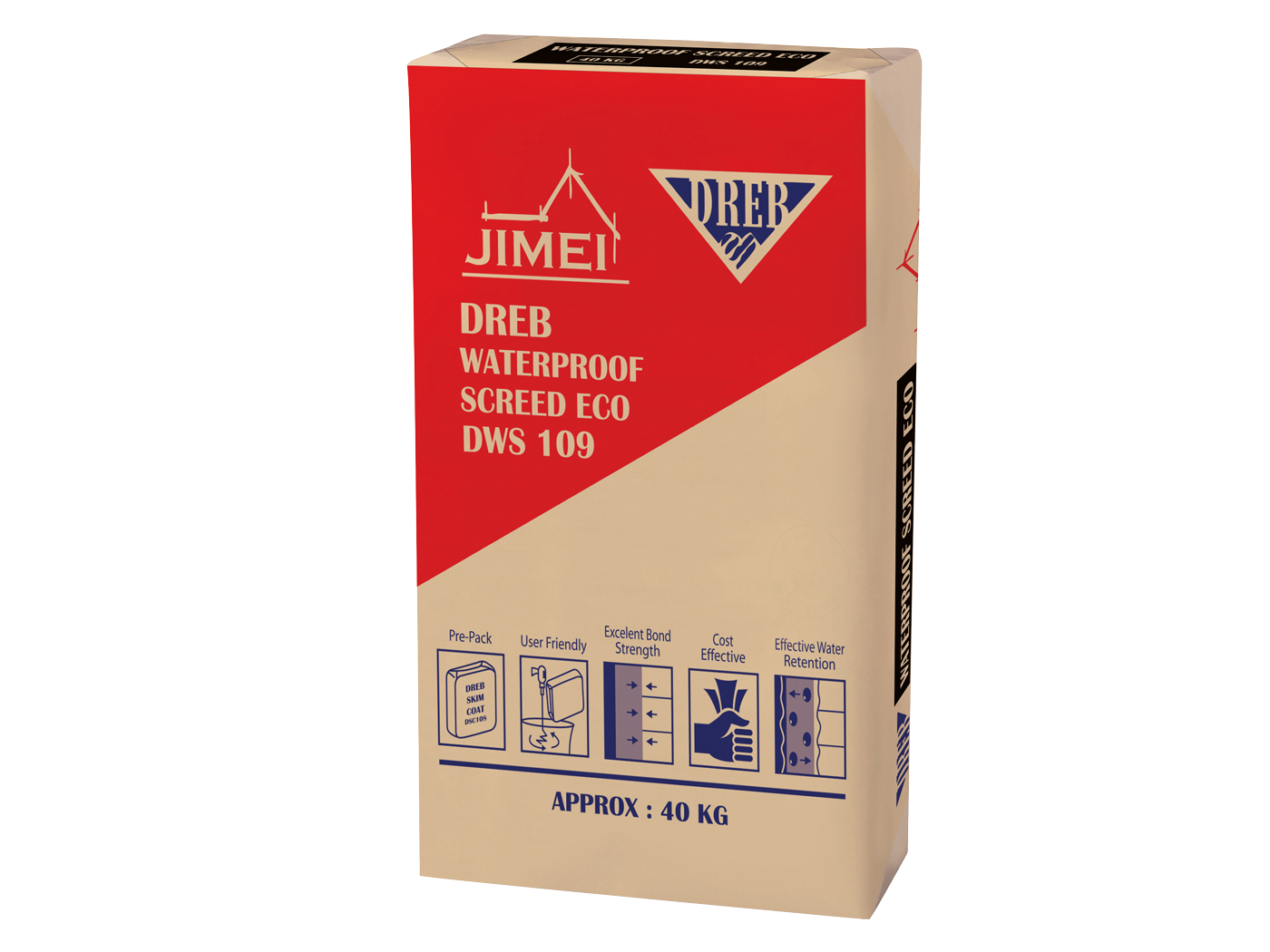

USES

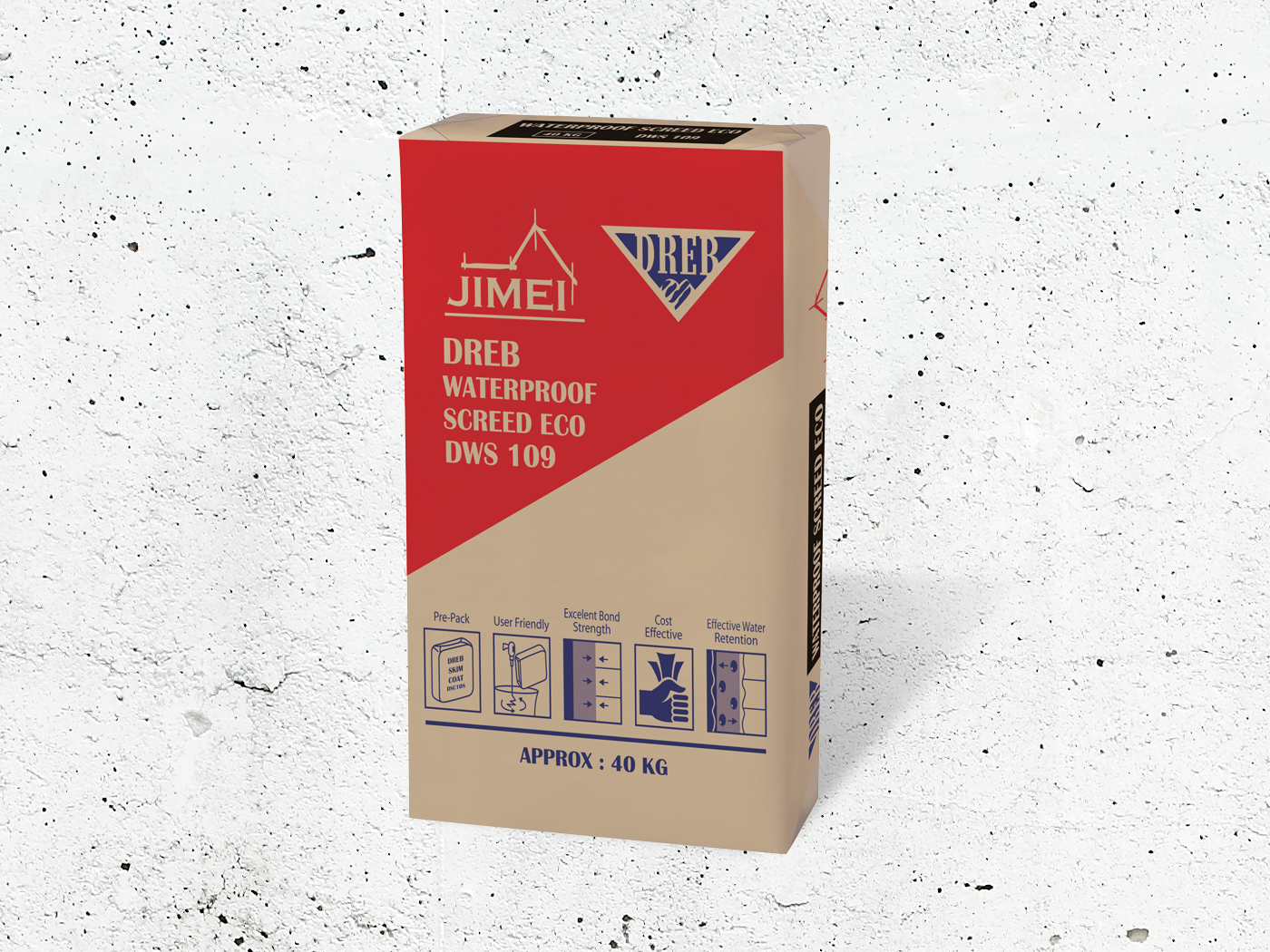

DREB WATERPROOF SCREED is suitable for waterproofing toilets, kitchens, bathrooms, balconies, parking garages, basement, tunnels, and whenever a waterproof screed or rigid membrane is needed.

BENEFITS

  Good weather resistance and high durability.
  Excellent bond strength and workability.
  Premixed to ensure good consistent quality.
  Good flowability.
  Convenient in placing, handling, mixing and application.

DIRECTION FOR USE

Surface preparation All surface of substrates should be clean and remove from oil, grease, dust and others contaminants. Dry substrates should be dampened before application of DREB WATERPROOF SCREED. For old worn out concrete substrates, the surface should be hacked off and buttering with bonding agent before applying DREB WATERPROOF SCREED。

Mixing Mix of DREB WATERPROOF SCREED should use the clean water and mix thoroughly using a hand-held or mechanical mixer for 3-7 minutes until a desire homogenous mix is achieved and ensure the mix is free from lumps. The mix ratio is add approximately 5.0 – 6.0 litres of clean water to 40 kg bag of DREB WATERPROOF SCREED.

Application method Apply DREB WATERPROOF SCREED by use a steel trowel, wooden/steel float while the mix is still workable for application onto the substrate and concrete. It should be cured for at least 1 day (24 hours) before any tiling works.

POT LIFE

Approximately 30 – 40 minutes after mixing.

PACKAGING

One bag of DREB WATERPROOF SCREED is packed in 40 kg.

SHELF LIFE

Shelf life up to 12 months from the date of production. It must store in dry place free from moisture contact in original sealed packing.

TECHNICAL INFORMATION

  Appearance
    Grey
  Water/powder ratio
    5.0 – 6.0 litresof water per40 kg bag
  Compressive Strength
    ≥ 25 N/mm² (28 days)
  Binder
    Portland Cement
  Filler Material
    Graded Sand
  Wet Density
    Approximately1700 – 1800 kg/m³
  Recommended Thickness
    10mm – 50mm per layer of application
  Coverage
    Approximately 2.1 - 2.4m² / 10mm thick / 40kg bag
  Stiffening Time
    1.0 N/mm² –> Approximately 282 min – 360 min
    2.0 N/mm² –> Approximately 332 min – 420 min

USES

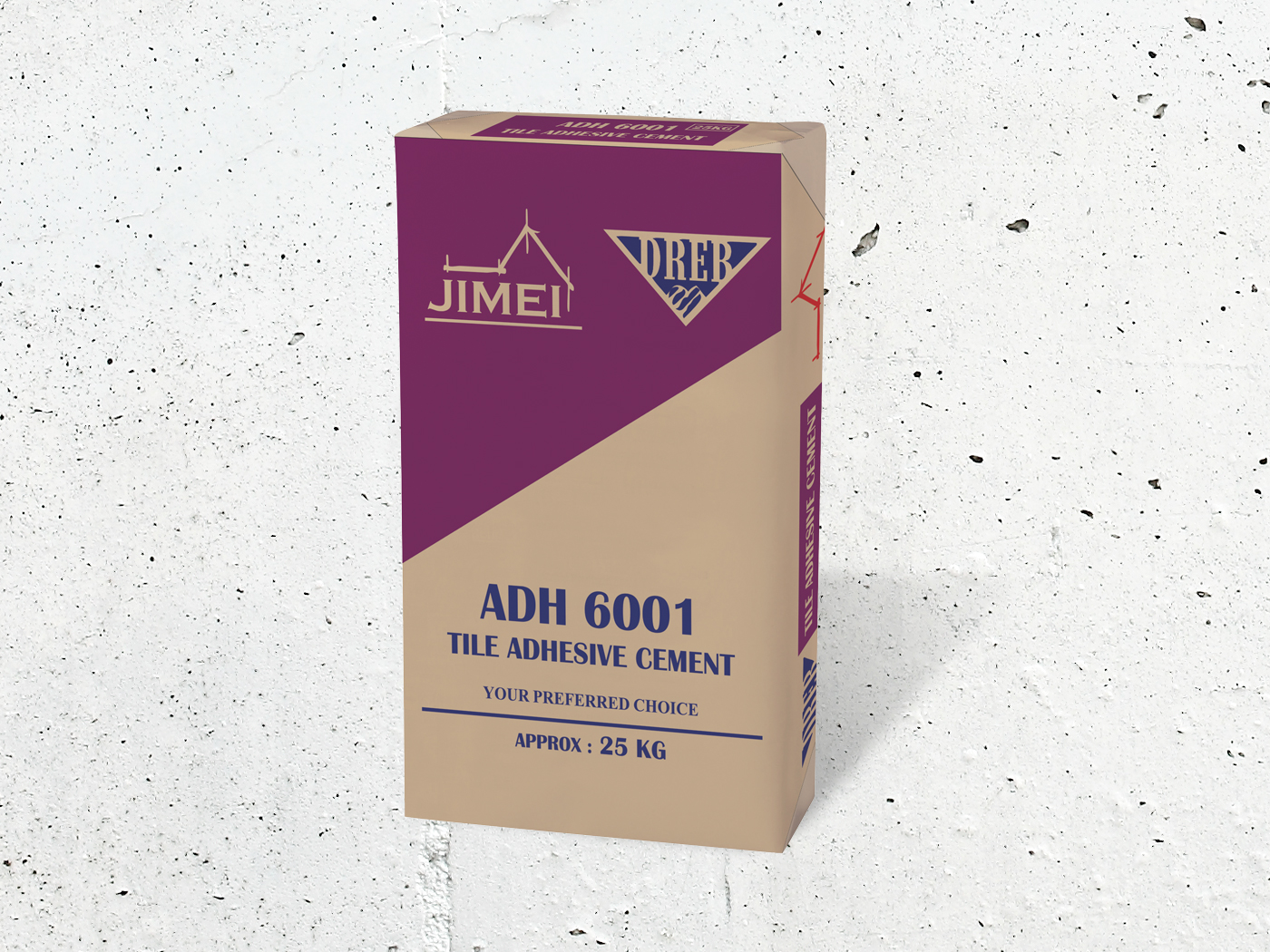

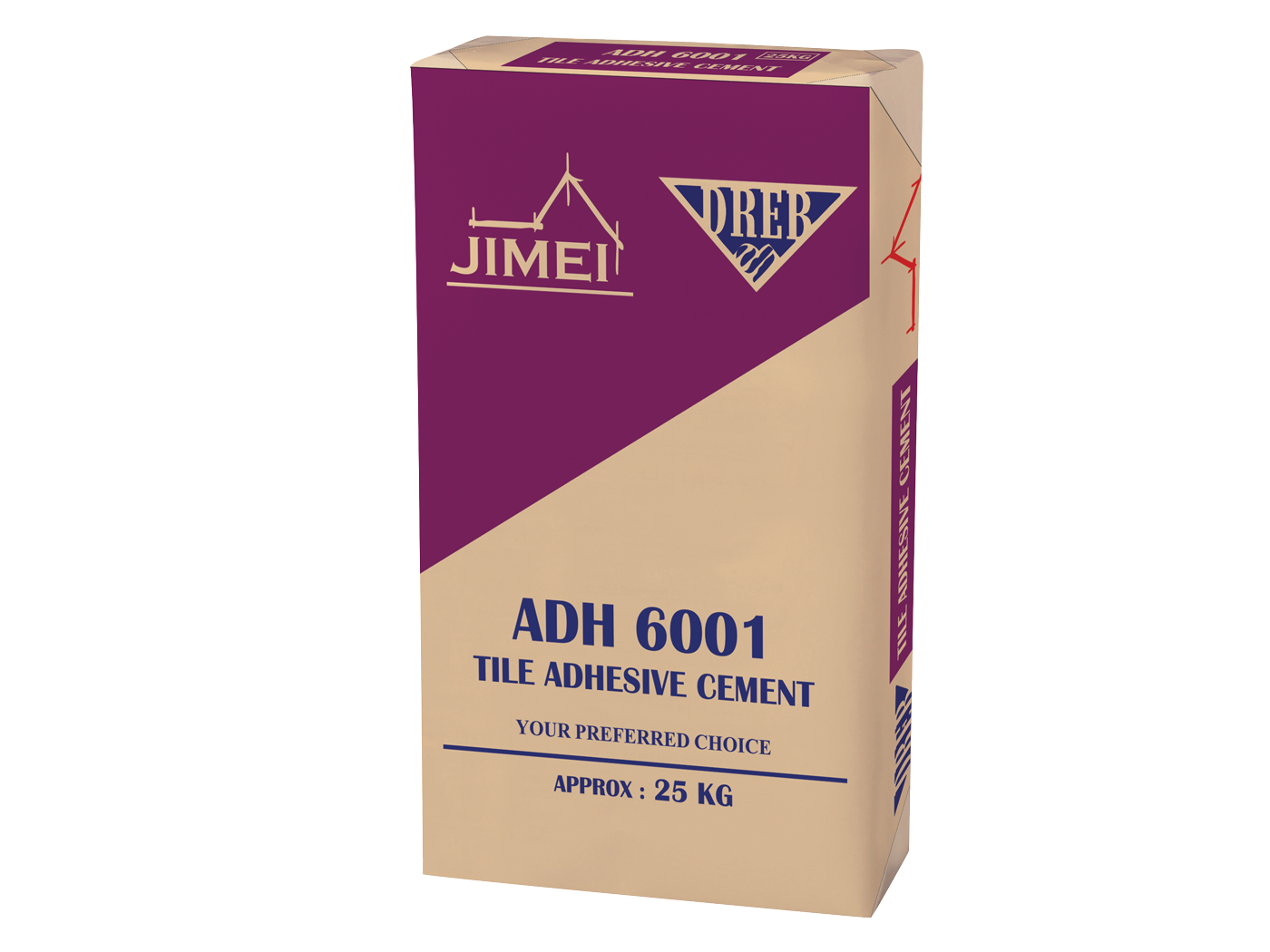

DREB TILE ADHESIVE is use to lay tiles, marbles or natural stones onto concrete render, block work, and rendered brickwork surfaces. Can be used on walls and floors in both interior and exterior applications.

BENEFITS

  Environmental friendly.
  Soaking of tiles in water before installation is not required.
  Water resistant, can be used in toilets, kitchens, etc.
  Excellent bond strength and workability.
  Consistent quality.
  Anti-sagging.
  Convenient in placing, handling, mixing and application.

DIRECTION FOR USE

Surface preparation All surface of substrates and tiles back-face should be clean, free from oil, grease, dust and others contaminants which may affect adhesion. Dry substrates should be dampened before application.

Mixing Mix of DREB TILE ADHESIVE should use the clean water and mix thoroughly using a hand-held or mechanical mixer for 3-5 minutes until a uniform paste is achieved and ensure the mix is free from lumps. The mix ratio is add approximately 5 – 6 litres of clean water to 25 kg of DREB TILE ADHESIVE.

Coverage Coverage varies according to surface condition and the build-up required. The following can be used as an approximate guide:
 - Using a 4.5mm x 4.5mm notched trowel, approximately 2 kg/m²
 - Using a 6mm x 6mm notched trowel, approximately 2.5 kg/m²
 - Using a 10mm x 10mm notched trowel, approximately 3.5 kg/m²

Application method DREB TILE ADHESIVE applied by use a notched trowel for application onto the substrate and buttering onto the back-face of the tile to enhance the performance and proper coverage of the adhesive. Tile with deep grove should be properly buttered and ensure the adhesive have proper coverage in the inner grove of the tiles.

PACKAGING

One bag of DREB TILE ADHESIVE is packed in 25 kg.

SHELF LIFE

Shelf life up to 12 months from the date of production. It must store in dry place free from moisture contact in original sealed packing.

TECHNICAL INFORMATION

  Appearance
    Grey
  Water/powder ratio
    5 – 6 litres of water per 25 kg
  Tensile Adhesion Strength
    7 days - ≥ 0.3 N/mm²
  Strength BS EN 1348:2007
    28 days - ≥ 1.0 N/mm²
  Tensile Adhesion Bond
    28 days - ≥ 1.0 N/mm²
  Strength After Water Immersion
    BS EN 1348:2007
  Strength After Heat Aging
    BS EN 1348:2007
  Open Time
    BS EN 1346:2007 :≥ 0.5 N/mm² afternot less than 30 min
  Deformity
    EN 12002:2002 : 2.5mm to 6.00mm
  Recommended Thickness
    Depending on tiles thickness

USES

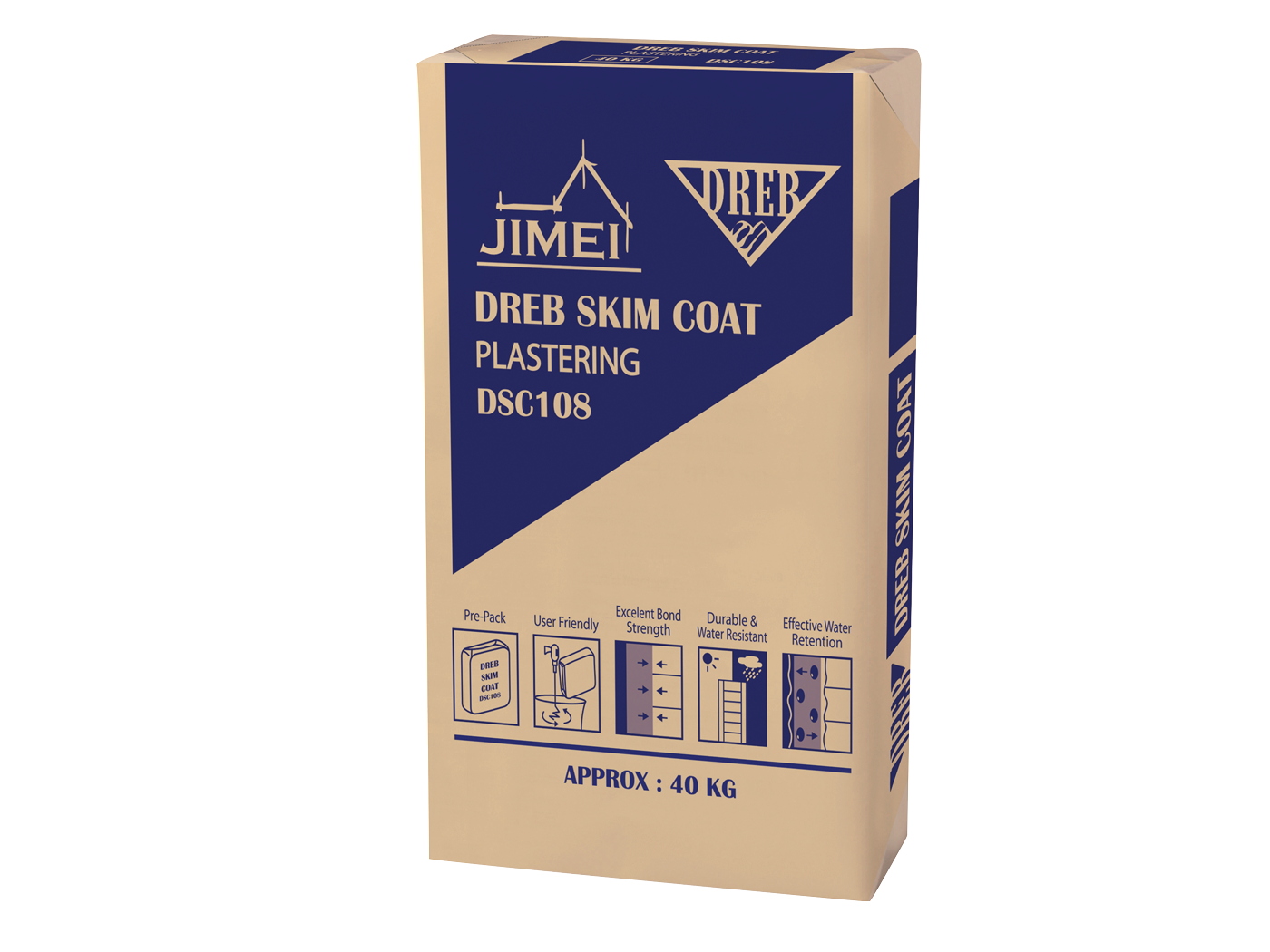

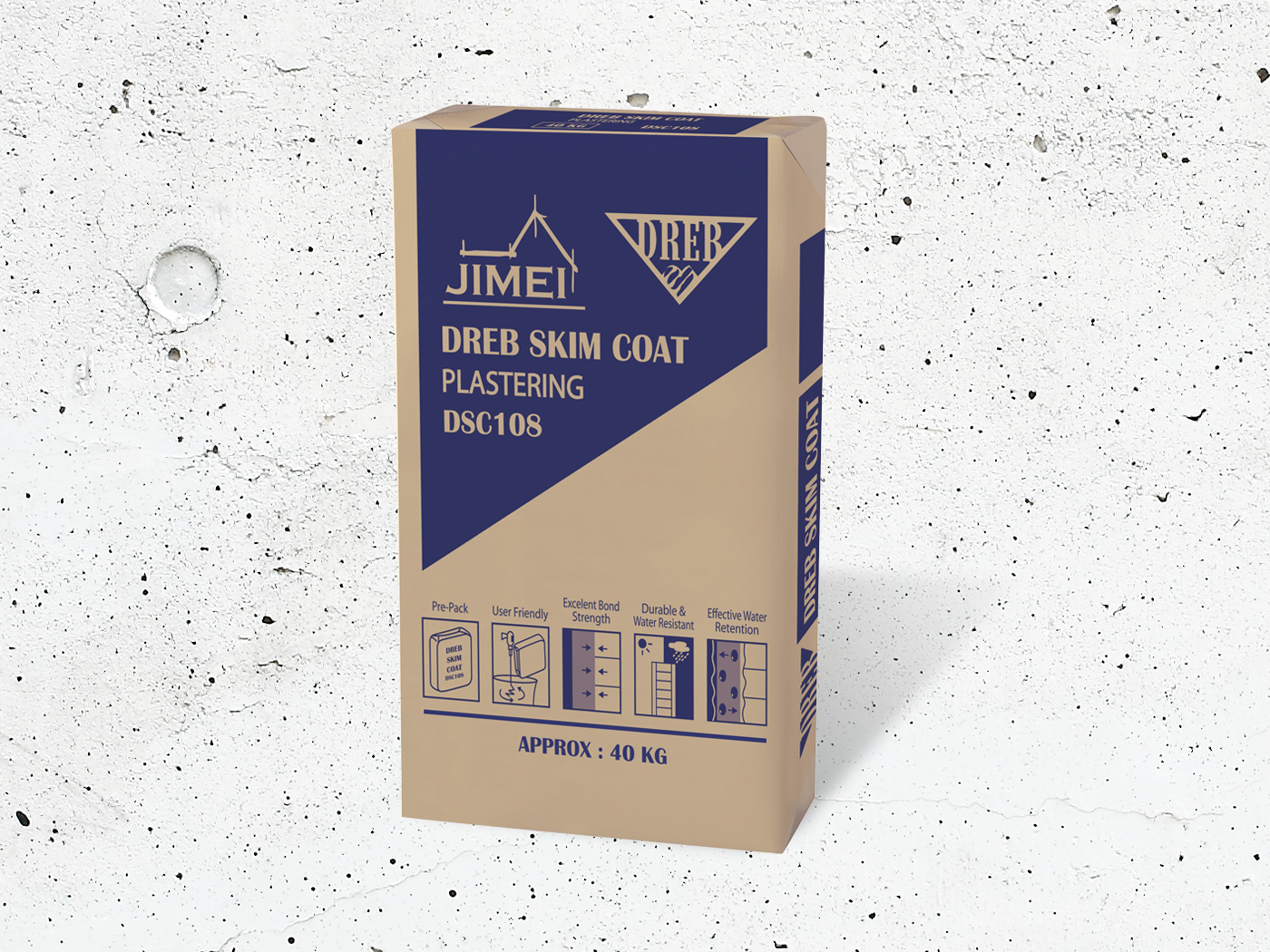

DREB Skim Coat ECO (INTERNAL) is special formulated for high quality, it is good to finish on concrete surfaces such as column, beam, stab, lightweight block wall and to finish plaster surfaces. It contents additive that improve workability, consistency, water retentively and bond strength. Should not apply on all painted surfaces.

BENEFITS

  Easy to use, just mix with water.
  High bonding strength.
  Minimize shrinkage cracking.
  High durability.
  Good weather resistance.

DIRECTION FOR USE

Surface preparation All surface must be structurally sound, clean, and free from dust, or others foreign materials that effect adhesion and bonding. For dry or high absorbing substrates, pour the surfaces with water prior.

Mixing Application Add 40 kg of DREB Skim Coat ECO (INTERNAL) with 12 to 13 litres of water. Mix thoroughly with an electrical mixer or manually for about 3 to 5 minutes until the desired homogeneous paste is obtained.

Application Apply with using a steel trowel or spray machine.

PACKAGING

Available in 40 Kg.

SHELF LIFE

Shelf life up to 12 months in unopened bags and containers stored in a dry elevated position.

TECHNICAL INFORMATION

  Appearance
    Grey
  Water/powder ratio
    12 to 13 litres of water per 40 kg/bag
  Compressive Strength
    7 - 12 N/mm2
  Tensile Adhesion Strength
    Average Strength >0.75 N/mm2
  Recommended Thickness
    1 to 5 mm per layer
  Coverage
    Approximately 28 to 34 m2/mm/40 kg
  Additive
    Polymer to improve workability, water retention, and adhesion

USES

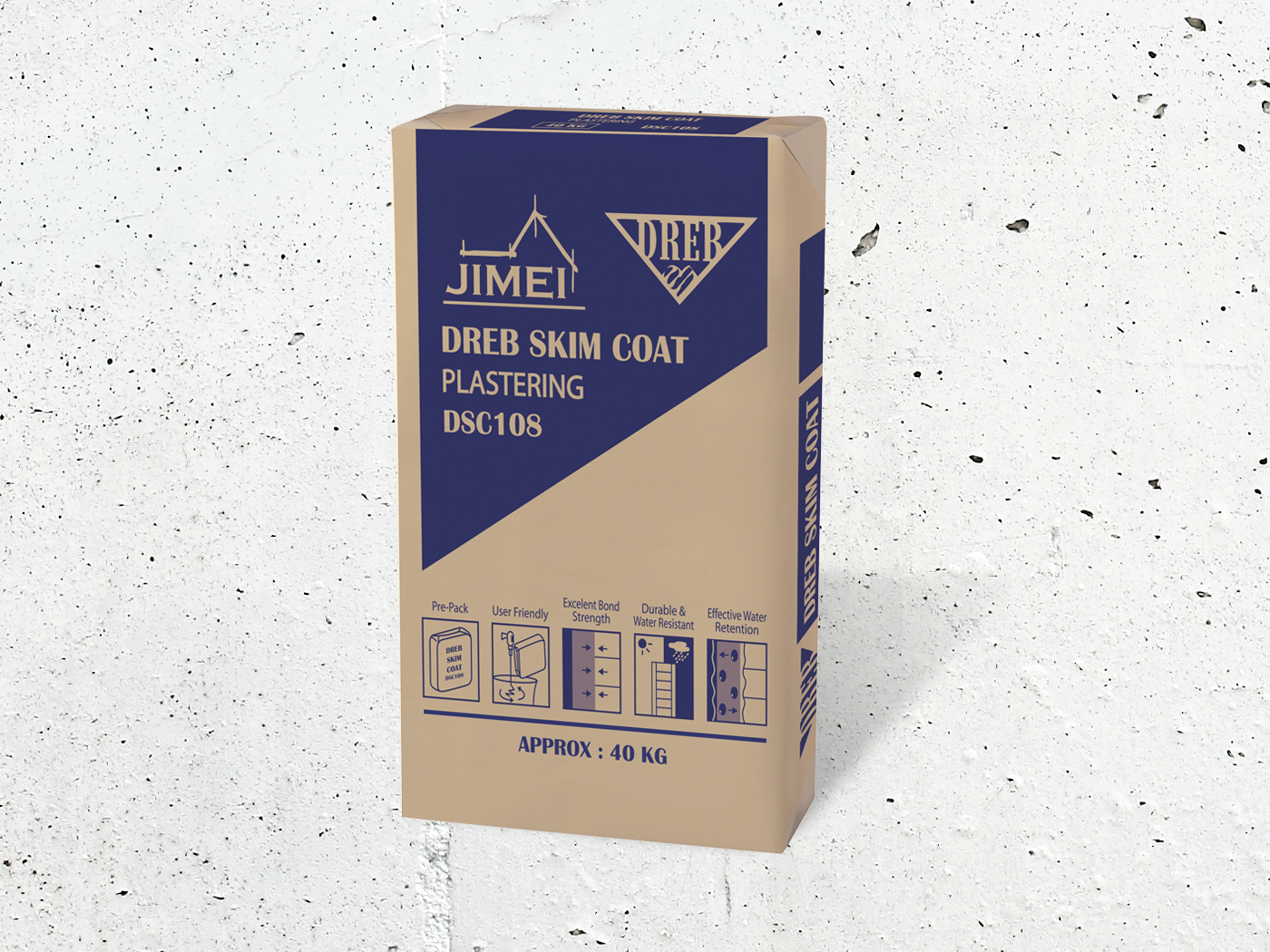

DREB Skim Coat ECO (EXTERNAL) is special formulated for high quality, it is good to finish on all types of concrete surfaces such as column, beam, stab, lightweight block wall and to finish plaster surfaces. It contents additive that improve workability, consistency, water retentively and bond strength. Should not apply on all painted surfaces.

BENEFITS

  Easy to use, just mix with water.
  High bonding strength.
  Minimize shrinkage cracking.
  High durability.
  Good weather resistance.

DIRECTION FOR USE

Surface preparation All surface must be structurally sound, clean, and free from dust, or others foreign materials that effect adhesion and bonding. For dry or high absorbing substrates, pour the surfaces with water prior.

Mixing Application Add 40 kg of DREB Skim Coat ECO (EXTERNAL) with 12 to 13 litres of water. Mix thoroughly with an electrical mixer or manually for about 3 to 5 minutes until the desired homogeneous paste is obtained.

Application Apply with using a steel trowel to a maximum thickness of 3mm and cured under shaded ambient conditions. After about 4 hours, the second coat is applied such that total thickness does not exceed 6mm. It will remain workable for approximately 60 minutes after mixing.
DREB Skim Coat ECO (External) can be finished with soft hair brush or trowelled smooth. It is important to protect the product during placement and whilst curing from direct sunlight and winds.

PACKAGING

Available in 40 Kg.

SHELF LIFE

Shelf life up to 12 months in unopened bags and containers stored.

TECHNICAL INFORMATION

  Appearance
    Grey
  Water/powder ratio
    12 to 13 litres of water per 40 kg/bag
  Compressive Strength
    7 - 12 N/mm2
  Tensile Adhesion Strength
    Average Strength >0.75 N/mm2
  Recommended Thickness
    1 to 5 mm per layer
  Coverage
    Approximately 28 to 34 m2/mm/40 kg
  Additive
    Polymer to improve workability, water retention, and adhesion

AREA OF APPLY

Swimming pool, external and internal wall and floor of buildings, water tank, cold room and substrates subject to slight vibration.

COVERAGE

1 liter of JME101 mix with 2 kg cement and 2 kg sand covers approximate 1.7 sq.m using a 6 mm notched trowel.

DIRECTION FOR USE

Surface preparation Masonry and concrete surfaces must be free from dust, oil, grease and other contaminants prior to tiling.

Mixing Put the solution in the pail and while the electric hand mixer is operating, gradually add the premixed cement and sand in to the pail until a creamy consistency mix is achieved.

Application method Spread the creamy adhesive using the required notched trowel for different thickness bed. Do not spread the adhesive over large area, preferably 1 sq.m at a time.

PACKAGING

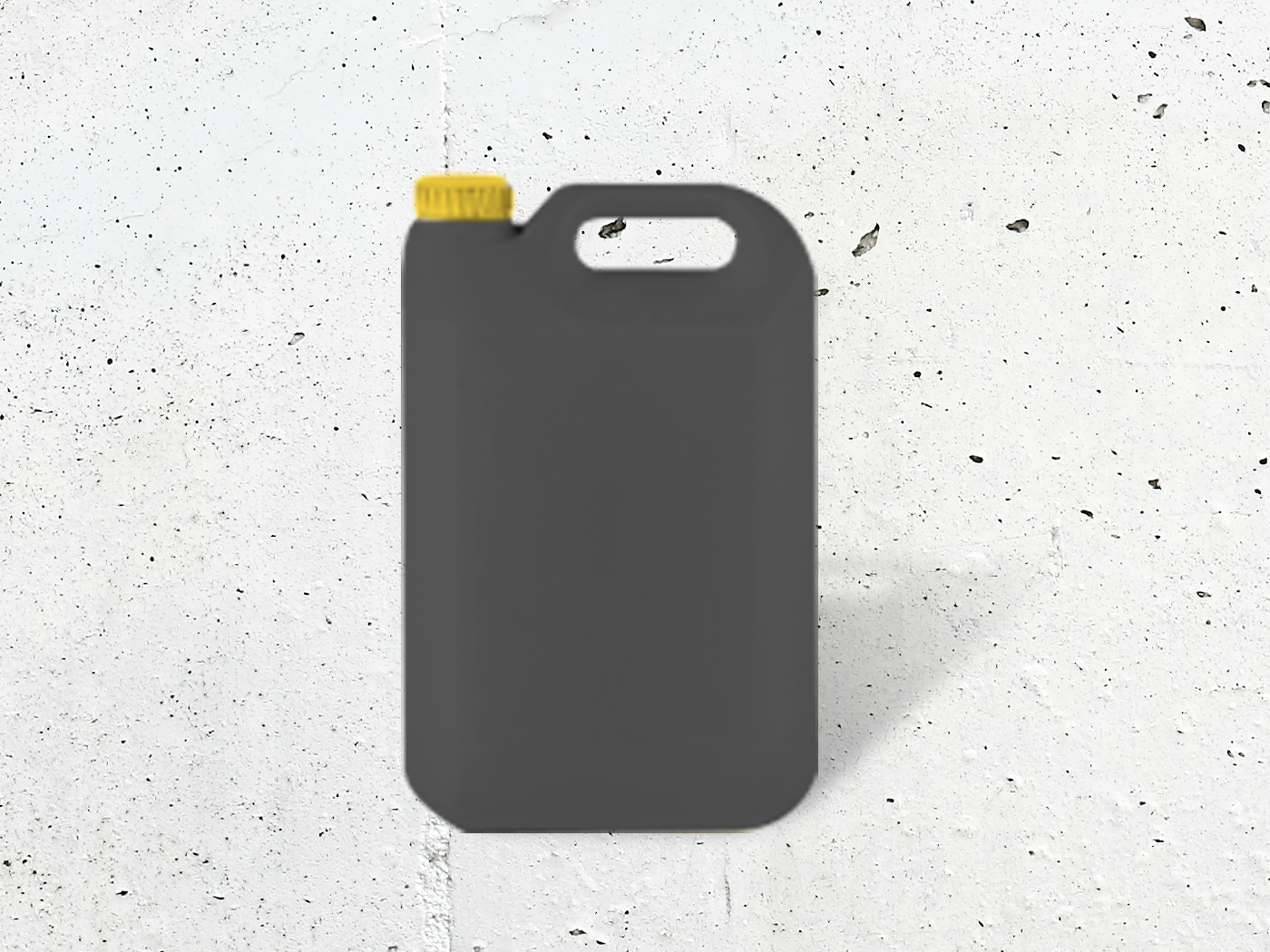

JME101 is available in 200 litres, 20 litres, and 4 litres.

TECHNICAL INFORMATION

  Appearance
    Milky
  pH Value
    8.5 - 9.5
  Specific Gravity
    1.02 at 25 ‘C
